Common Problems
Which Era Is My Dacor? The 2016 Line That Changes Everything
Samsung acquired Dacor in September 2016, and the appliances changed underneath. A Dacor built before that date runs Dacor's own control boards and reports F-codes — F0 to F8 on Classic ERC ovens and ranges, F1 to F95 on ER-series ranges, F-1 to F-9 on EDW and IDW dishwashers. A Dacor built after it runs the Samsung platform and reports C-## strings on ovens and ranges, and letter pairs ending in C on dishwashers. The two eras do not share a single code string, and the same characters mean different things in each. The model number on the rating plate settles which you have: DOP, DOB, DRF, DRR, DRZ, DRW, DDW, DTI, DTG, DTT and DHD numbers are the current platform, while ER30D, EDW, IDW, DR30DNG and CM24P belong to the era before it.
The full guide
Every make has a code table. Dacor has two, and they have nothing in common.
Dacor error code meaning: why a Dacor code cannot be looked up on its own
Search for a Dacor error code and you will find three answers that contradict each other. That is not sloppy publishing — it is a real feature of this badge. F2 is a runaway heat condition on a Classic ERC wall oven, a communication problem between the control panel and the relay board on an ER-series range, and a touch-controller failure on a Modernist induction cooktop. Three appliances, three meanings, one string.
So the code alone is never the question. The question is which appliance and which era, and once you have those two facts the meaning is unambiguous.
What actually changed in September 2016
Samsung Electronics America announced the acquisition on 10 August 2016 and closed it the following month. Dacor kept its name, its line and its own site, and it is sold today as Samsung's ultra-premium subsidiary. Underneath, the electronics moved to the parent's platform.
That shows up in three places at once: the code family, the control board, and the part numbers. A supplier handed the wrong generation will sell you the wrong board perfectly happily, because on paper the request looks reasonable.

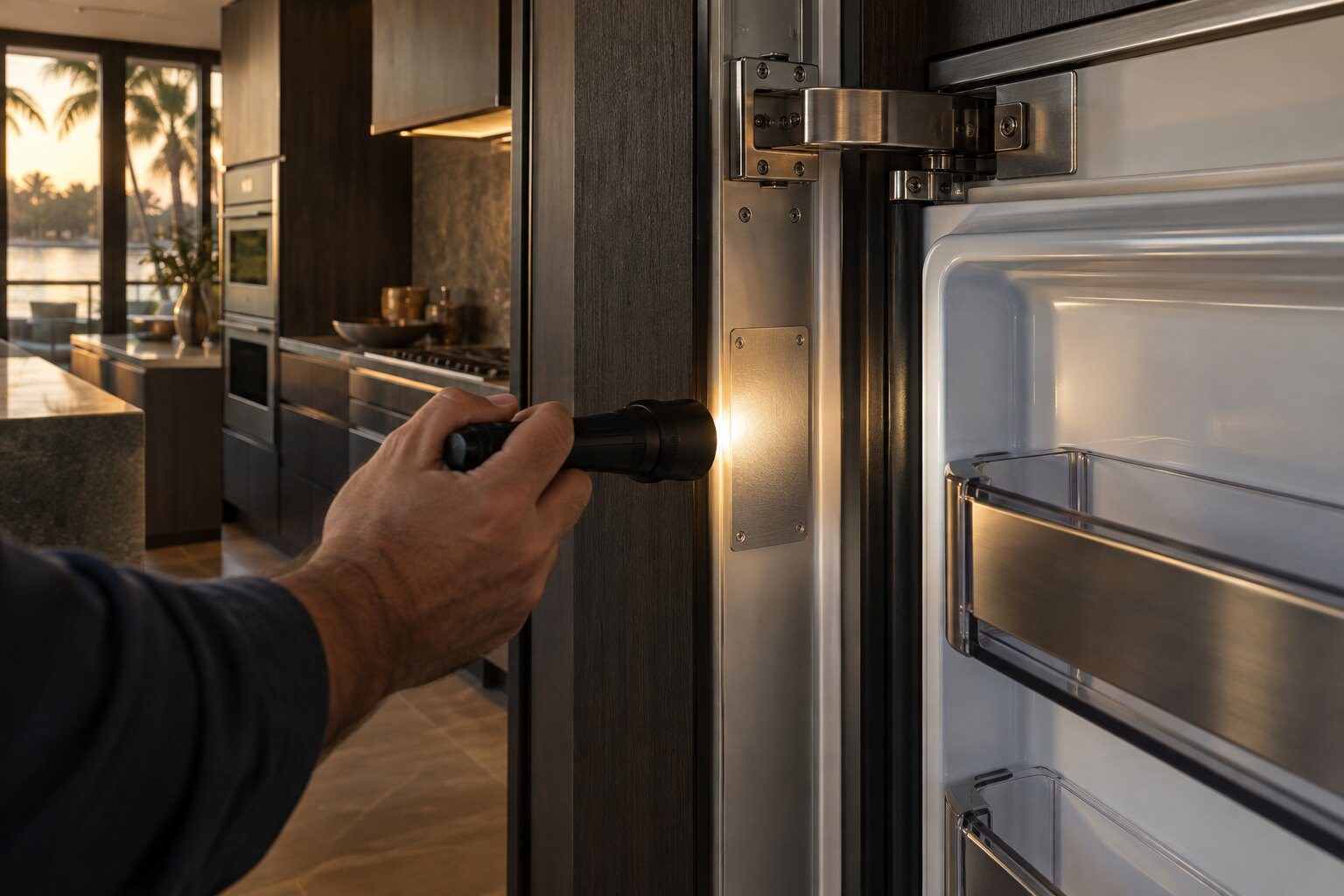

Where the plate is on each appliance
On refrigeration, inside the cabinet on the upper left wall. On a dishwasher, along the frame the door closes against. On a column, behind the base grille or the kick panel. On a wall oven, along the edge of the door or inside the frame. On a rangetop, underneath at the front edge, which usually means a torch and a mirror.
If the plate genuinely cannot be reached — and on a panel-ready column fitted tight into joinery it sometimes cannot — the original invoice or the kitchen paperwork will carry the model number.
Reading the model number
The current generation uses three letters beginning with D: DOP and DOB for ranges and wall ovens, DRF for French-door refrigerators, DRR for refrigerator columns, DRZ for freezer columns, DRW for wine, DDW for dishwashers, DTI and DTG for induction and gas cooktops, DTT for rangetops, DHD for hoods.
The earlier machines look nothing like that. ER30D, ER36D and ER48D are ranges. EDW and IDW are dishwashers. DR30DNG and DR30GS are Distinctive ranges. CM24P and CM24T are the built-in coffee systems, a platform that was discontinued without a successor.
What this changes about a repair
Three things, and they compound. The code table decides what the code means. The board decides what part is ordered. And on the legacy machines, availability decides whether the repair is possible at all — some boards are genuinely no longer made, and that is a conversation to have before labor is booked rather than after a visit that ends in an apology.
It is also why owners of pre-2016 Dacor appliances are so often told the machine cannot be fixed. Usually it can. What it needs is somebody holding the right table.
If it turns out to be a repair
What this leads to, and what it costs
Every job on this site is priced the same way: an on-site diagnostic first, the figure agreed in writing before anybody starts.
-
Legacy control diagnosis
The service that exists because this badge changed hands in 2016. Appliances made before that run Dacor's own boards and report F-codes — F0 to F8 on a Classic ERC oven, F1 to F95 on an ER-series range, F-1 to F-9 on an EDW or IDW dishwasher — and none of those strings exist on the current platform. A technician who only knows the current machines will read them wrongly or not at all, which is why owners of these appliances are so often told their machine is unfixable. It usually is not. What it needs is the right table and an honest answer about parts.
- Pre-2016 codes share nothing with the current platform
- F1, F2 and F3 mean different things on a Classic ERC oven and an ER range
- The honest part of this service is the parts answer, given before the visit
-
Range error code F2
Dacor range error code F2: Two boards that have to talk to each other have stopped, and on this platform the cable between them is a more common cause than either board. Which machines can raise it, what the maker publishes about it, and what to do next.
What this one means -
Oven error code F2
Dacor oven error code F2: The cavity went hotter than the control was asking for, and the control shut it down. Which machines can raise it, what the maker publishes about it, and what to do next.
What this one means
Questions people ask about this
Does it mean my Dacor is really a Samsung?
No, and anybody who tells you that is oversimplifying. Dacor is run as Samsung's ultra-premium subsidiary with its own product line and its own site. What genuinely changed in 2016 is the electronics platform underneath: the code family, the control boards and the part-number formats. That is a service fact rather than a marketing one, and it is the reason the era matters when something goes wrong.
My kitchen was fitted in 2016. Which is it?
The plate settles it and nothing else does, because appliances sit in warehouses and showrooms for months. If the plate is unreachable behind fitted joinery, the model prefix in your paperwork or on the original invoice will do — the current generation's prefixes are three letters starting with D, and the older machines look nothing like them.
Is one era better than the other?
They are different rather than better. The legacy machines are heavy, well documented and repairable, with the caveat that some control boards are no longer made. The current machines have a broad parts channel and connect to an app. What matters practically is that a technician knows which one is in front of them.
