- “An oven thirty degrees out passes its own self-test”
- “Probe at rack height and a logged preheat — not a thermometer on a shelf”
- “Sitting steadily wrong and swinging widely are different problems”
Symptom
Dacor oven bakes unevenly or at the wrong temperature
An oven can be thirty degrees out and pass every self-test it is capable of, because it believes its own sensor. That is why this complaint is diagnosed with an independent probe and a logged preheat rather than by opinion or by an oven thermometer left on a shelf. On this make there is a second question first: which era the appliance is from. An older cavity may report a sensor problem through a code table that no longer exists on the current machines, and a newer one reports something else entirely.
- From $95 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
- In writing the price, before anything is opened
Three ordinary causes
What this usually turns out to be
Cheapest and commonest first, which is also the order we check them in. They sit hundreds of dollars apart, and only the unit settles which one is yours.
-
The temperature sensor has drifted
Sensors age, and a cavity that reads itself warm will under-bake everything while insisting it is at temperature. This is the commonest cause and is corrected by calibration or by a part.
Temperature sensor and calibration from $149 -
The door is no longer sealing
A hinge that has settled lifts the seal along the top edge, and the cavity then loses heat continuously at one end. It presents as uneven browning long before anybody suspects the door.
Oven door and hinge repair from $169 -
An element or the convection fan is failing
A partly failed element heats but not evenly, and a convection fan that has slowed leaves the cavity behaving like a conventional oven that nobody asked for.
Oven not heating from $175
In five minutes
Before you call anybody
None of it needs tools, and all of it makes the visit shorter.
-
01
Log a preheat and a hold
Two readings twenty minutes apart. Overshoot and settling band are the diagnosis.
-
02
Note the pattern of the unevenness
Front to back is usually airflow or the door. Top to bottom is usually an element.
-
03
Check the door seal by hand
Paper drag at the corners and along the top edge, which is where wall ovens fail first.
How it shows up
What people describe when they call
A shortcut
Narrow it down before anybody arrives
A description of the behaviour leaves a few possible causes. A code names the subsystem before anybody opens anything, which is why it is worth photographing before it clears.
If there is no code at all
DOB30M977DS
DOB30M977DM
DOB30M977SS
DOB30M977SM
DOB30T977SS
DOB30T977DS
HWO130FS
DOP30T940DS
DOP36T86DLS
DOP36C86DLS
DOP48C96DLS
DOP48T960DS
The data plate is inside the cabinet, upper left wall or behind the grille. All models
In more detail
About Dacor oven bakes unevenly or at the wrong temperature
What to do in the next ten minutes

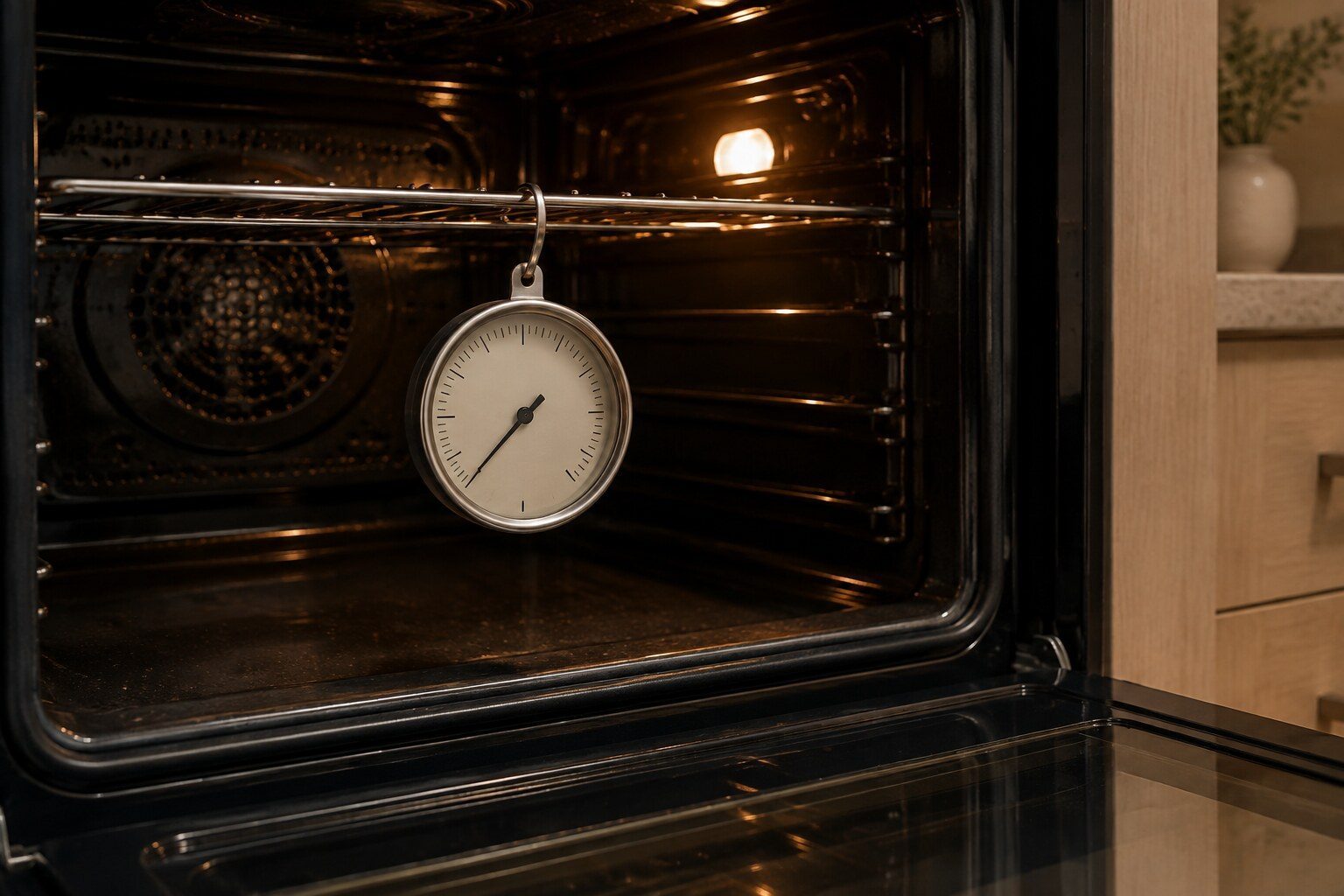

Put an oven thermometer at rack height in the middle of the cavity and preheat to 350 °F. Read it at the beep and again twenty minutes later — the difference between those two readings is as useful as either of them. Note whether food browns unevenly front to back or top to bottom. Check that the door closes squarely and that the seal is in contact all round.
Why the appliance cannot tell you
An oven's self-diagnosis compares what it is doing against what its own sensor reports. If the sensor is the thing that has drifted, everything agrees with everything and the oven declares itself well. Only a measurement from outside that loop catches it, which is why we ask for a thermometer reading rather than a description of the cake.
The era question, again
A Classic ERC cavity reports a shorted sensor as F3 and an open one as F4. A Modernist cavity reports both as C-20. Neither table applies to the other machine, and a code read from the wrong one produces a confident wrong answer. Establishing the age of the oven takes one question and prevents that entirely.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about Dacor oven bakes unevenly or at the wrong temperature
Can I just adjust the offset?
On most of these ovens there is a calibration offset, and where the cavity is steadily wrong by a consistent amount that is a legitimate fix. Where it swings, an offset hides the problem and makes it harder to find later.
The oven is old. Is it worth calibrating?
Usually yes. These are heavy, well-built cavities and a sensor is an ordinary part. What we check first is whether the part exists for that generation, and we say so before booking.
