- “The mechanism fails far more often than the oven does”
- “A drawer that will not close leaves an oven that will not run — by design”
- “Mechanical repair, ordinary parts, and not the end of the appliance”
Symptom

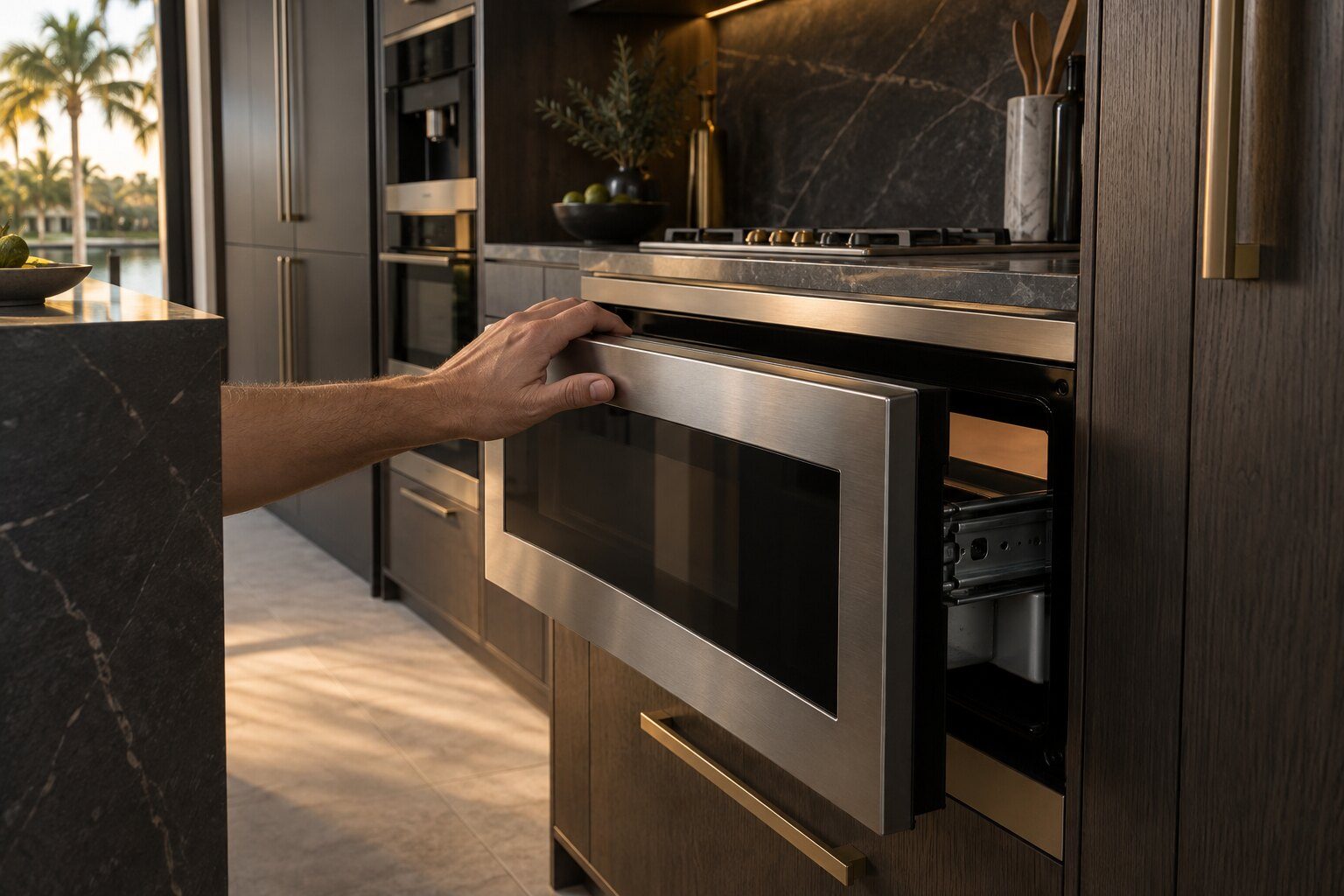

Dacor microwave drawer will not open
A drawer microwave is a motorized mechanism as well as an oven, and the mechanism is what usually fails. A drawer that stops partway, will not open, or opens and immediately closes is a drive, a rail or an obstruction — and while that is unresolved the oven will refuse to heat, because the interlock chain is not satisfied. That refusal reads as a dead appliance and is in fact the machine being careful. It is a mechanical repair, it is common, and it very rarely means the microwave itself is finished.
- From $95 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
- In writing the price, before anything is opened
Three ordinary causes
What this usually turns out to be
Cheapest and commonest first, which is also the order we check them in. They sit hundreds of dollars apart, and only the unit settles which one is yours.
-
A rail or the drive has worn
These are ordinary mechanical parts moving several times a day for years. Wear shows first as binding on the return stroke and later as a drawer that stops short.
Microwave drawer mechanism from $185 -
Something is fouling the runner
Small objects fall into the track and jam it, and food debris hardens into an obstruction that behaves exactly like a failed drive. It is the cheapest outcome and worth checking first.
Microwave drawer mechanism from $185 -
The appliance is fitted too tightly
A drawer in a surround that has moved — a worktop replaced, a cabinet re-fitted — will bind along one edge and eventually stall. That is an installation correction rather than an appliance repair.
Appliance installation from $225
In five minutes
Before you call anybody
None of it needs tools, and all of it makes the visit shorter.
-
01
Try it empty as well as loaded
Binding under load only is a rail; binding either way is the drive or an obstruction.
-
02
Look into the runner with a torch
Objects fall in here more often than anybody expects, and they are free to remove.
-
03
Do not force it
The drive is the part that breaks when a stuck drawer is pushed, and it is the dearer one.
How it shows up
What people describe when they call
A shortcut
Narrow it down before anybody arrives
A description of the behaviour leaves a few possible causes. A code names the subsystem before anybody opens anything, which is why it is worth photographing before it clears.
If there is no code at all
The data plate is inside the cabinet, upper left wall or behind the grille. All models
In more detail
About Dacor microwave drawer will not open
What to do in the next ten minutes
Work the drawer gently by hand with the appliance switched off and note where it binds, and whether it binds empty as well as loaded. Look along both rails for anything that has fallen into the runner — a skewer, a lid, a stray coin. Do not force it past a stop: the drive is the part that gives way. Note the model number from the drawer frame or the cabinet opening.
Why the oven refuses to work
An oven that will not run behind a drawer that will not close is not two problems. The interlock chain has to be satisfied before the appliance will heat, and the drawer's position is part of it. Once the mechanism is right the oven is almost always found to have been fine throughout.
Where the appliance sits makes the difference
A drawer microwave under a stone worktop with a tight surround takes longer to remove than the repair itself takes. That is the access half of this visit, and it is worth knowing that it exists before a quote arrives.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about Dacor microwave drawer will not open
Can I use it while the drawer is stiff?
Yes, carefully, as long as it closes fully. What is worth avoiding is forcing it, which turns a rail repair into a drive replacement.
Is a drawer microwave a bad design?
No — it is an excellent one for a kitchen where nobody wants to reach over a range. It simply has a mechanism, and mechanisms are serviced. The oven behind it lasts as long as any other.
